24VDC 100mm Travel 2400mm min CNC Plasma Cutting Lifter Z axis Anti Collision Clamp in CNC Controller from Tools

24VDC 100mm Travel 2400mm min CNC Plasma Cutting Lifter Z axis Anti Collision Clamp in CNC Controller from Tools

Product Specification

Model Number: JYKB-100-DC24V-T3

Application: Lathe and Turning Center

working voltage: DC24V

working speed: 2400mm/min

travel: 100mm

load: 3kg

clamp hole of torch gun: 12mm-38mm

motor type: dc motor

Description:

24VDC 100mm Travel 2400mm/min CNC Plasma Cutting Lifter Z axis +Matching small fixture



model:

JYKB-100-DC24V-T3 applicable to flame and plasma cutting

the motor inside is DC motor

Packing details:



JYKB-100-DC24V-T3 lifting body*1pc

4 pin plug*1pc

Anti collision Clamp *1pc

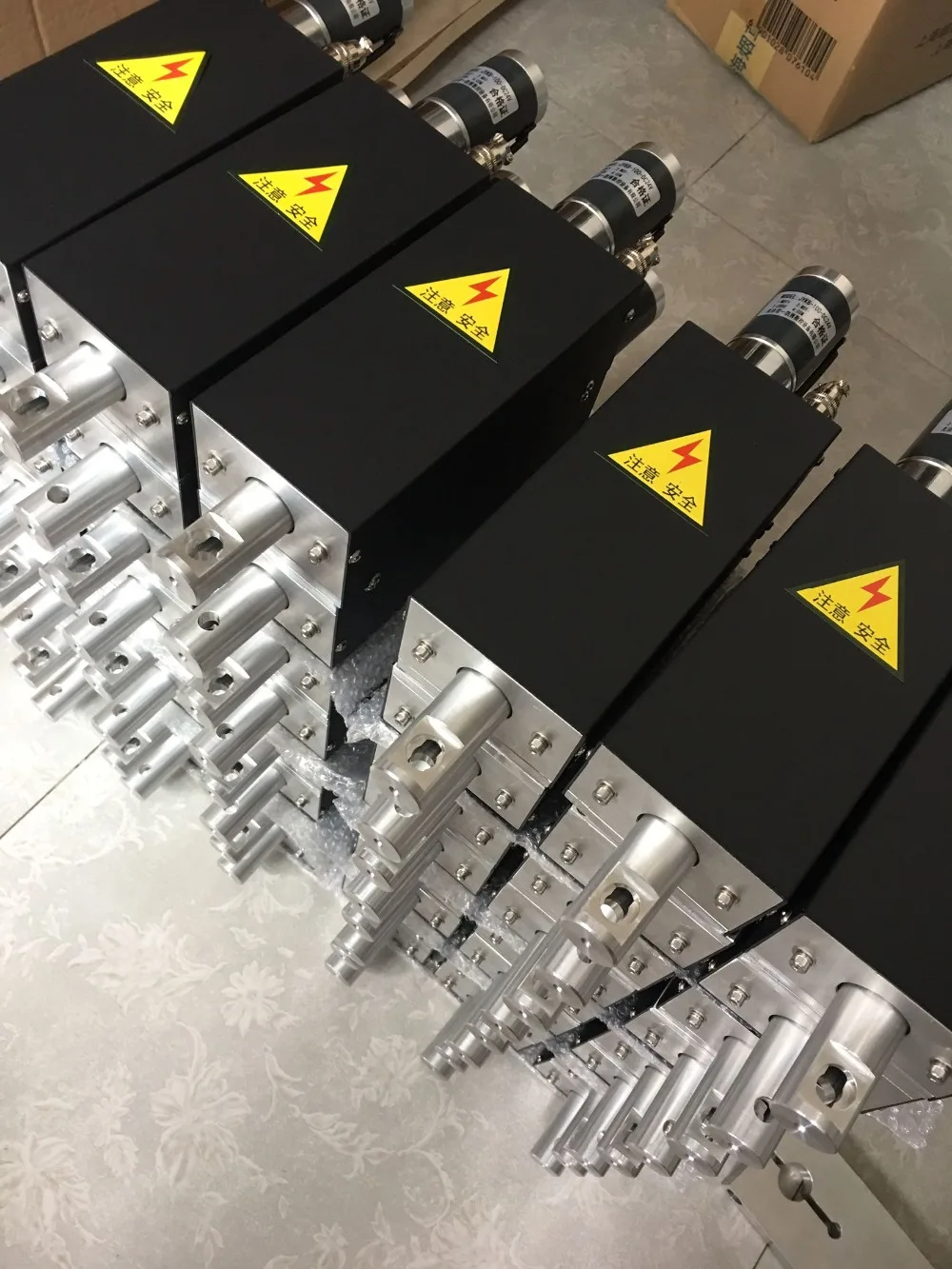

Model:JYKB-100-DC24V-T3 Just applicable to:  CNC plasma lifting body, desktop CNC cutting machine lifting body, portable cutting machine lifting body.



Specifications and features of CNC plasma lifter- Z axis:





  • 304 stainless steel T-type screw
  • With clamp (20mm to 40mm cutting gun)
  • CNC flame and plasma anti-collision gun function (optional)
  • Plasma arcing positioning function inside the lifting body
  • The main aluminum plate, the upper and lower aluminum plates are 8mm thick, and the machining center is formed once.
  • Four core aviation plug
  • Color: shell black spray
  • Working stroke: 100mm
  • Working voltage: DC24V
  • Weight: about 1.8 kg (without packaging)
  • Carrying weight: 3 kg
  • Size: length 320* width 80* height 60
  • The length of the mounting hole is long: 40mm between the center distance of the left and right holes, and 70mm between the center distances of the upper and lower holes;
  • Navigation control plug definition:
  • 1 foot - MOT+; (motor positive)
  • 2 feet - MOT-; (motor negative)
  • 3 feet - Zero; (positioning normally open zero signal output)
  • 4 feet - COM; (positioning normally open COM signal output)
  • Note: Built-in limit of the lift body (using 10A reverse diode) you do not need to rewire
  • Definition of air plug:

  • 1 foot --MOT+; (motor anode)

  • 2 foot --MOT-; (motor cathode)

  • 3 foot --Zero; (location normally open -zero signal output)

  • 4 foot --COM; (location normally open -COM signal output)

  • Note: the lifting body built-in limit (10A reverse diode) don't need you connection.





2





Small fixture gun range: 20mm to 40mm cutting gun.













3410
